High Mast Lighting Poles

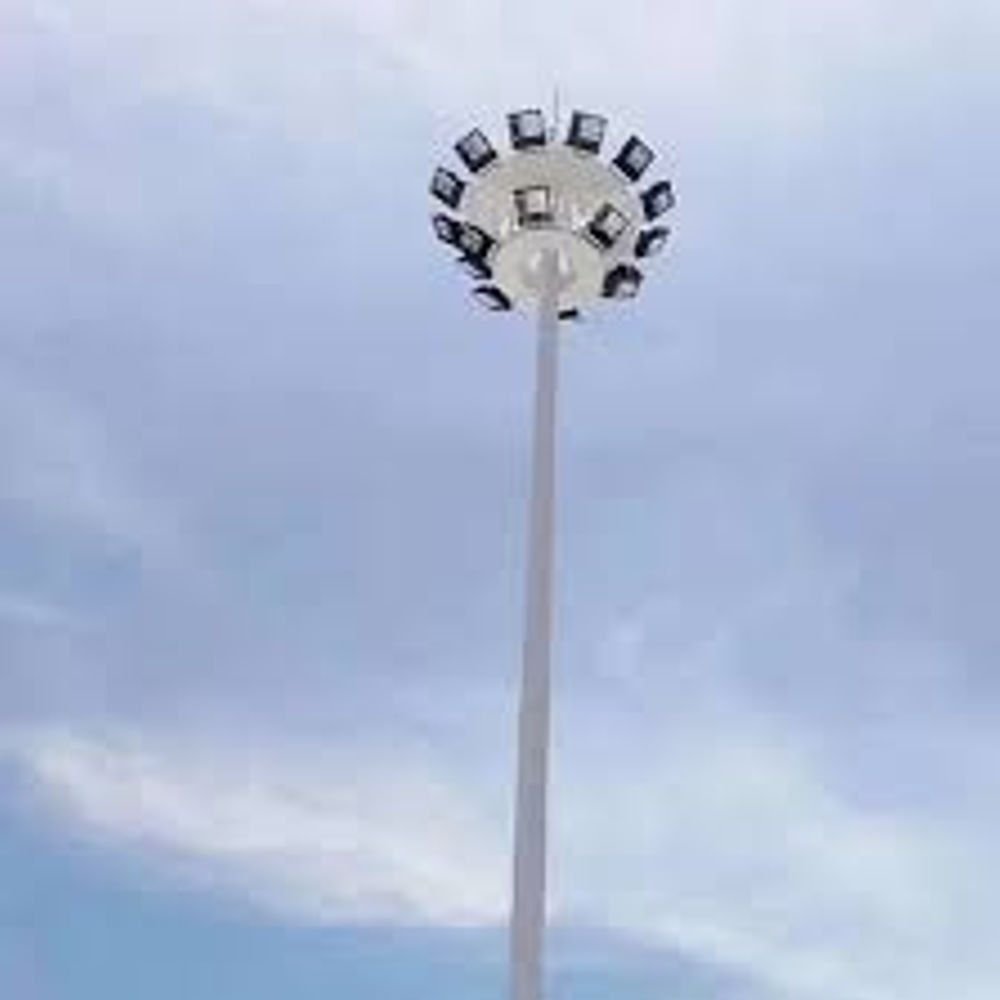

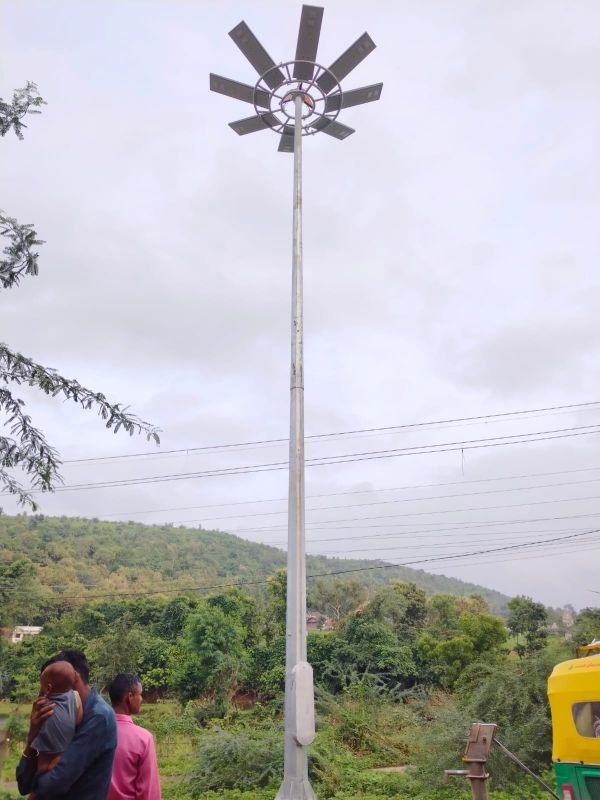

Leading Manufacturers, Exporters and Wholesaler of 12.5 Meter High Mast Lighting Pole, 16 Meter High Mast Lighting Pole, 20 Meter High Mast Lighting Pole, 25 Meter High Mast Lighting Pole and 30 Meter High Mast Lighting Pole from Noida.
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Section | 2 |
| Diameter Top | 120mm |
| Diameter Bottom | 310mm |
| Thickness Top | 3mm |
| Thickness Bottom | 3mm |
| Base Plate PCD | 440mm |
| Number Of Foundation Bolts | 06 |
| Length Of Foundation Bolt | 750mm |
| Foundation Bolt Diameter | 25mm |
| Approved Standard | IS 875:1987 |
Supply of 12.5Mtr.High Mast Pole Hot Dip Galvanised, with all accessories etc.
| Business Type | Manufacturer, Exporter, Supplier |
| Section | 2 |
| Diameter Top | 150mm |
| Diameter Bottom | 360mm |
| Thickness Top | 3mm |
| Thickness Bottom | 3mm |
| Base Plate PCD | 460mm |
| Base Plate OD | 540mm |
| Number Of Foundation Bolt | 08 |
| Length Of Foundation Bolt | 750mm Long, X 25mm |
| Approved Standard | IS 875:1987 |
Section : 2, Dia : Top: 150mm, Bottom : 360mm, Thickness : Top: 3mm, Bottom : 3mm Base Plate: PCD: 460 mm, OD: 540mm No. of foundation Bolt: 08Nos. Length of foundation Bolt: 750mm long, X 25mm. Approved: IS 875:1987
| Business Type | Manufacturer, Exporter, Supplier |
| Height | 20 Meters |
| Top Diameter | 150 Mm |
| Bottom Diameter | 410 Mm |
| Top Thickness | 3 Mm |
| Bottom Thickness | 4 Mm |
| Standard Approval | IS 875:1987 |
Suitable for 180/hrs Wind Speed, Section: 2, 20 Mtrs Hot Dip Galvanised Highmast .system in Two Parts. with all Accessories.like- Headframe, Latern, Carriage, Compensator, Wire Rope, Winch Bracket, Winch, Motor, Foundation Bolts,Trailing Cable, Rest Clamp Etc.
| Business Type | Manufacturer, Exporter, Supplier |
| Diameter Top | 150mm |
| Diameter Bottom | 530mm |
| Thickness Top | 3mm |
| Thickness Middle | 4mm |
| Thickness Bottom | 5mm |
| Weight | 1000kg |
| PCD | 650mm |
| Foundation Bolt Size | 25mm X 1200mm |
| Material | Steel |
Supply of 25 Mtr. High Mast Lighting Pole (IS 875) suitable for 180/hrs wind speed, Section: 3 , Supply of foundation bolts along with nuts, washers, anchor plate and common template.
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Steel |
| Color | Gray |
| Section | 3 |
| Top Diameter | 530 Mm |
| Bottom Diameter | 150 Mm |
| Thickness | 5, 4, 3 Mm |
| Number Of Foundation Bolts | 12 |
| Length Of Foundation Bolt | 850 Mm |
| Standard Approval | IS 875:1987 |
Supply of 30Mtr.High Mast Pole Hot Dip Galvanised, with all accessories etc., suitable for 08 to 12 luminaries.
