| Business Type | Manufacturer, Exporter, Supplier |
| Working Temperature | -10°C To + 55°C |
| Mounting Height | 6 Meter |
| Solar Panel | 75W (Mono Crystalline, MNRE Approved) |
| Click to view more | |
Product Details
Battery Capacity
18AH / 12.8V (LiPO4)
LED Wattage
24W
Electronics
PWM Based Charge Controller (Make: ALES)
Operation
Light Dusk To Dawn Operation / Automatic On/off Operation
Protection
Open Circuit, Reverse Protection, Low Battery Protection, Over Charge Protection, Deep Discharge Protection, Reverse Polarity, Reverse Flow Protection, Over Load
Dimming System
Available
Motion Sensor
Available
LED Driver Efficacy
98%
LED Lumens Efficiency/Watt
110lm/watt
Rated Lamp Life
50000 Hrs
Housing
Aluminum Housing
IP Protection
IP65
Battery Life Cycle
2000
Charging Time
8 Hours
Backup
20 Hours
Light Coverage
120 Degree

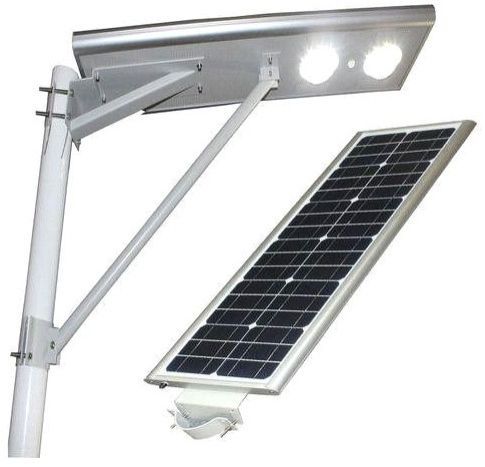

Description: This integrated solar street light features a 24W LED with 1W Osram LEDs (Part No: 3030). It includes a PWM Based Charge Controller (Make: ALES) and operates from dusk to dawn with automatic on/off functionality. It has a battery low cut-off, overcharging cut-off, and various protections like open circuit, reverse, low battery, overcharge, deep discharge, reverse polarity, reverse flow, and overload. It offers dimmer technology, a motion sensor, 98% LED Driver Efficacy, and 110lm/watt LED lumens efficiency. The housing is aluminum with IP65 protection.
