| Business Type | Manufacturer, Exporter, Supplier |
| Working Temperature | -10°C To + 55°C |
| Mounting Height | 6 Meter |
| Solar Panel | 60W (Mono Crystalline, MNRE Approved) |
| Click to view more | |
Product Details
Battery Capacity
18AH / 12.8V (LiPO4, BIS Approved)
LED Wattage
20W
Electronics
PWM Based Charge Controller (Make: ALES)
Operation
Light Dusk To Dawn Operation
Protection
Open Circuit, Reverse Protection, Low Battery Protection
Dimming System
Available
Motion Sensor
Available
LED Driver Efficacy
98%
LED Lumens Efficiency/Watt
110lm/watt
Rated Lamp Life
50000 Hrs
Housing
Aluminum Housing
IP Protection
IP65
Battery Life Cycle
2000
Charging Time
8 Hours
Backup
20 Hours
Light Coverage
120 Degree

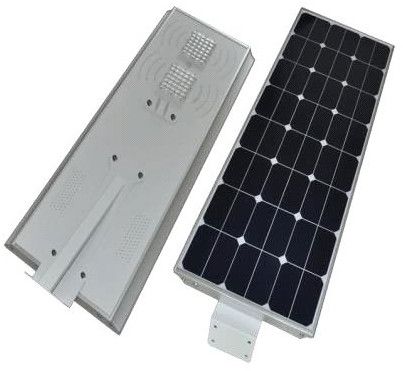

Description: This integrated solar street light features a 20W LED with 1W Osram LEDs (Part No: 3030). It includes a PWM Based Charge Controller (Make: ALES) and operates from dusk to dawn with automatic on/off functionality. It has a battery low cut-off, overcharging cut-off, and various protections like open circuit, reverse, low battery, overcharge, deep discharge, reverse polarity, reverse flow, and overload. It offers dimmer technology, a motion sensor, 98% LED Driver Efficacy, and 110lm/watt LED lumens efficiency. The housing is aluminum with IP65 protection.
